Could you indicate the rise time and fall time of the USB output signals sent by the isolator device to the downstream device?

Here you go:

Could you indicate the rise time and fall time of the USB output signals sent by the isolator device to the downstream device?

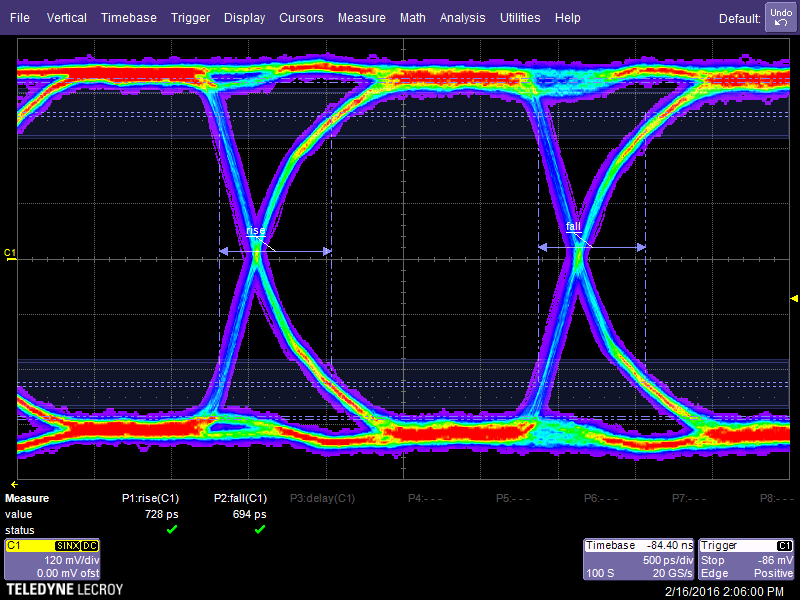

Measured using a 7 GHz differential hi-z probe (WL600+D600ST) at far end on a working device.
Please note: this is a measurement over a long time and many USB packets and this shows nothing more than a healthy connection. Please see here for official near end rise/fall times and jitter.

.
.
